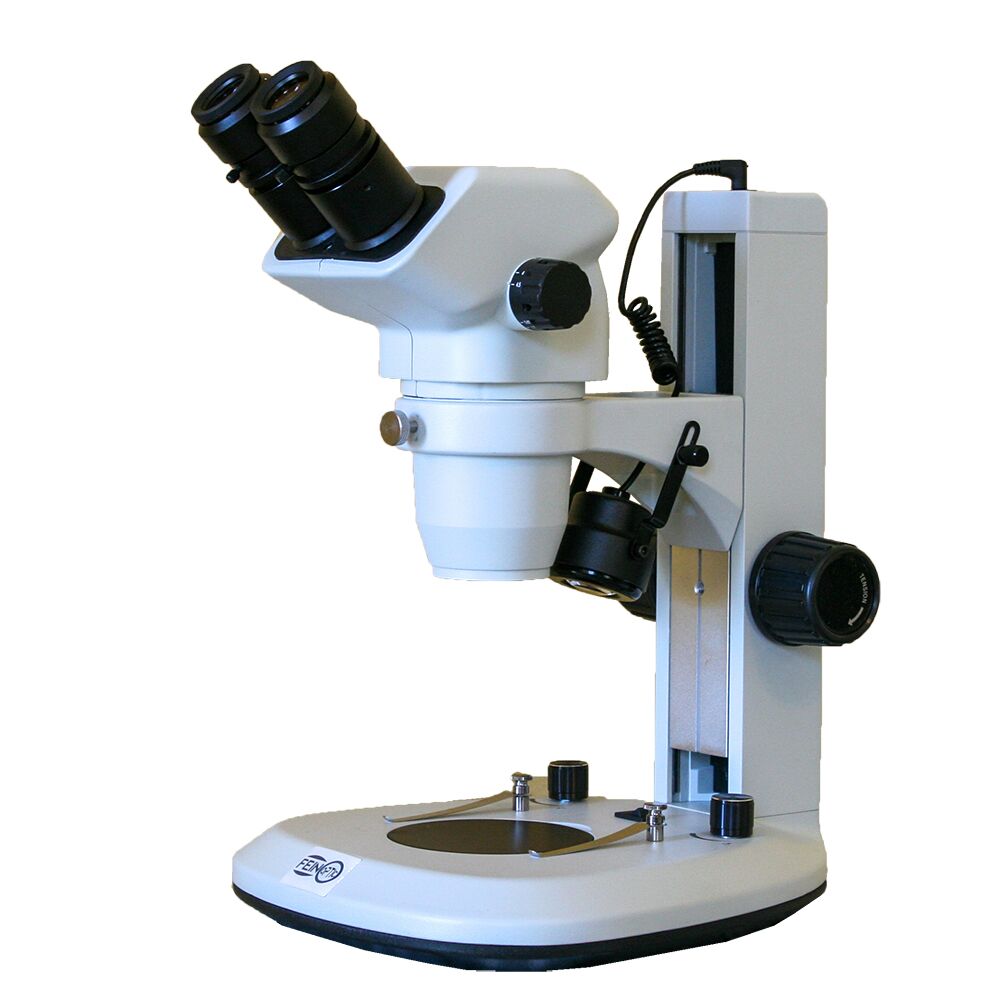

Fein Optic – FZ6-RLT Stereo Dual LED Microscope

The Fein Optic FZ6 stereo zoom microscope has a built-in objective zoom range of 0.67x – 4.5x. A variety of eyepieces and auxiliary lenses are available to take magnification as low as 3.4x and as high as 180x. The dual LED illumination system on the ILST stand provides bright, cool light, with 15 LEDs shining down on the stage. Digital cameras or HD monitors can be added to the stereo microscope to create an inspection system. Polarization can also be added to this microscope.

Specifications

Optical System Greenough Optical System
Viewing Head 45° Inclined binocular viewing head rotates 360°. Interpupillary distance adjustment from 54mm – 76mm.  Available with or without detent.
45° Inclined trinocular viewing head rotates 360°. Interpupillary distance adjustment from 54mm – 76mm. Beam splitter sends light 100% to eyepieces or splits light between left eyetube and trinocular port, while right eyetube goes dark. Available with or without detent.
Eyepieces WF10x-F widefield, high eyepoint, focusing eyepieces, FN22, with reticle retaining ring for 24mm diameter reticle.
WF15x-F widefield, high eyepoint, focusing eyepieces, FN16, with reticle retaining ring for 24mm diameter reticle.
WF20x-F widefield, high eyepoint, focusing eyepieces, FN12.
Objective Lenses Standard built-in objective: 0.67x – 4.5x zoom, provides zoom ratio of 6.7:1.
Auxiliary objective 0.5x, WD = 177mm.
Auxiliary objective 0.7x, WD = 120mm.
Auxiliary objective 1.5x, WD = 47mm.
Auxiliary objective 2.0x, WD = 26mm.
Working Distance 100mm. Can be adjusted to 26mm, 47mm or 177mm if auxiliary lens is used.
Focusing Holder Coarse 76mm diameter focus holder, 50mm focus range.
Stand Reflected and transmitted LED light track stand with ergonomic base. Top rheostat control for both lights. Includes 76mm diameter coarse focus holder. 115~230V. CE Certified.
C-Mount Adapters Focusing C-Mount Adapters 0.35x and 0.5x.
Illumination Top and bottom LED illuminators. Top LED light has 25 LED lights. 115V~230V.
Dimensions 11.75″ W x 12″ D x 12.5″ H
